12mm Dia Micro Metal Gear Motors N20 6V 200 RPM 12V 600-12500RPM for Smart Toilet- GM1024-N20
Motor Type Micro Metal Gear Motors N20
Rated Voltage 6.0 / 12.0V DC
Motor Sizes Φ12mm*15.2mm
Gearbox Sizes 24.0mm*10.0mm*9.0mm
(Length*Width*Thickness)
Develop samples, please contact us for customization and integration.
Affiliated Classification:
DC Motor
DC Gear Motor
Linear Actuator
N20 Motor
Product Accessories:
Product Description
Key Features:
Model: GM1024-N20 (N20 Series)
Diameter: 12mm (Compact & Lightweight)
Voltage: 6V (Standard) / 12V (High-Speed Option)
Speed Range:
200 RPM @ 6V (High Torque)
600–12,500 RPM @ 12V (Adjustable High Speed)
Shaft Types: D-Shaft
Material: Metal Gears (Durable & Long Lifespan)
Application: Ideal for Smart Toilets, Robotics, Automation, and Precision Devices

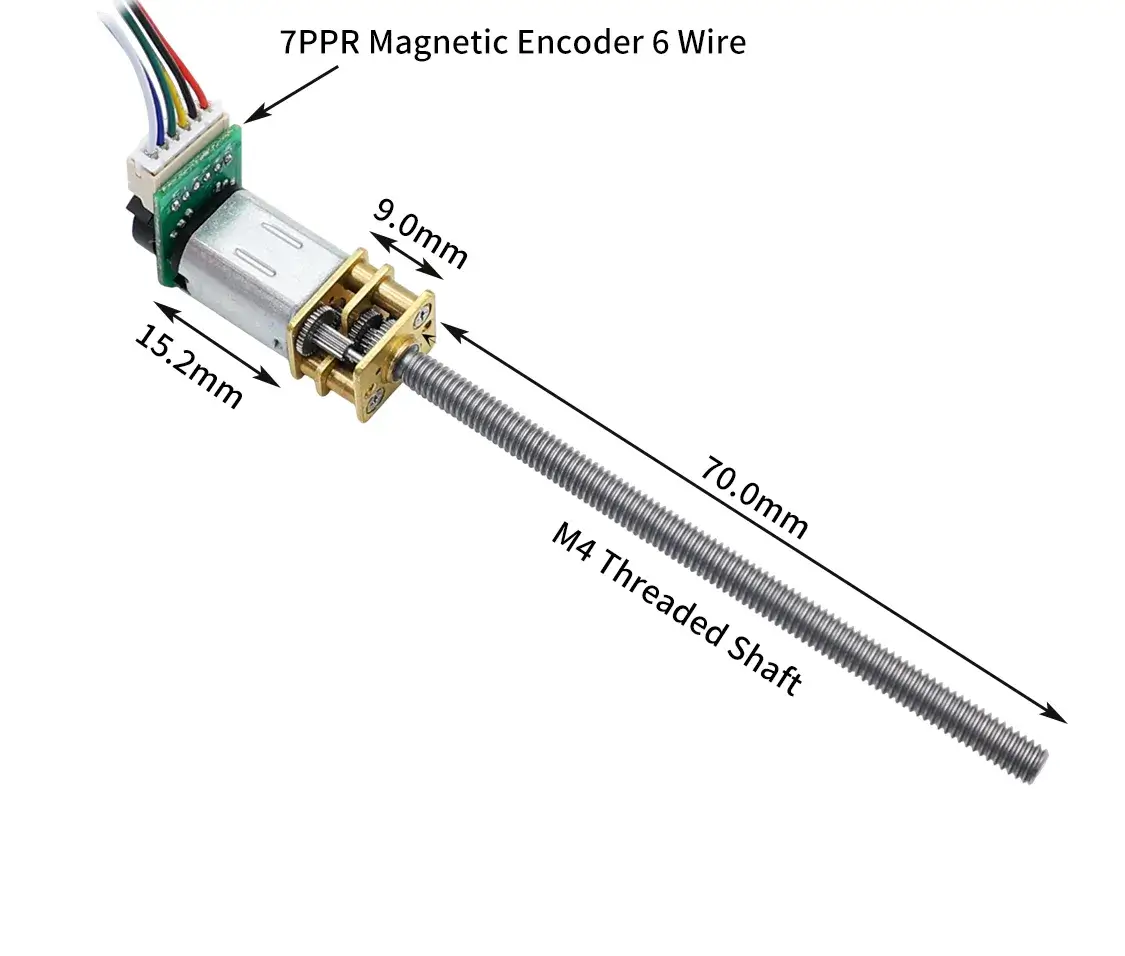

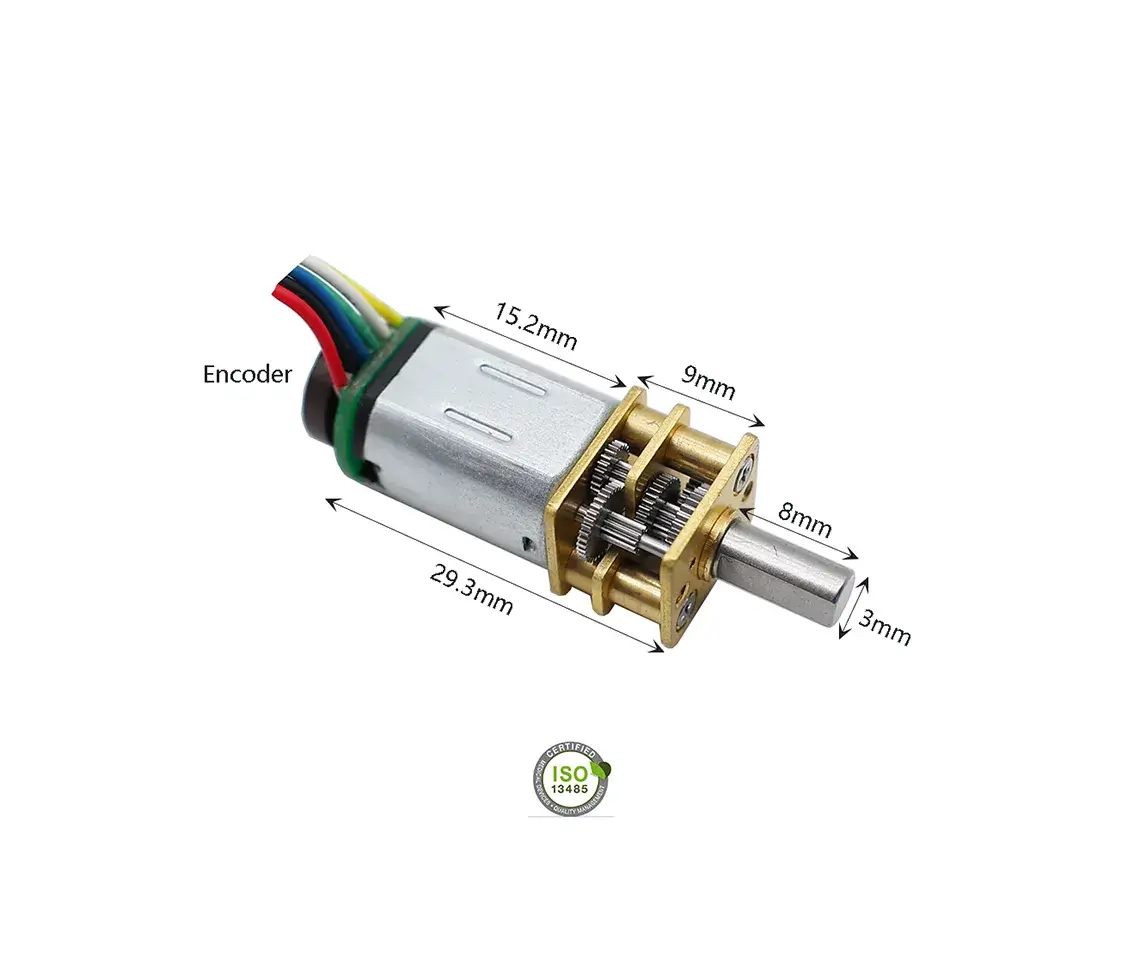

Customizable: Optional Encoder / Gear Ratio Adjustments
If you need any modifications or have any questions, please contact our engineers!
| Model | Voltage (V DC) | No-load | Maximum Efficiency | Output (W) | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (r/min) | Current (mA) | Speed (r/min) | Torque (g·cm) | Current (mA) | Torque (g·cm) | Current (A) | |||
| KFF-N20-092155 | 6.0 | 22500 | 70 | 20000 | 2.0 | 175 | 1.05 | 18.0 | 1.10 |
| KFF-N20-05540 | 12.0 | 12500 | 15 | 10600 | 2.0 | 55 | 0.66 | 13.16 | 0.20 |
| Specification | Reduction Ratio | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 10:1 | 30:1 | 50:1 | 100:1 | 150:1 | 218:1 | 250:1 | 298:1 | 350:1 | |
Gearbox Thickness (mm) | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
No-load speed (r/min) | 2250 | 750 | 450 | 225 | 150 | 103 | 90 | 76 | 64 |
Rated speed (r/min) | 2000 | 667 | 400 | 200 | 133 | 92 | 80 | 67 | 57 |
Rated torque (kg·cm) | 0.02 | 0.04 | 0.06 | 0.12 | 0.12 | 0.17 | 0.20 | 0.24 | 0.28 |
| (ozf·in) | 0.28 | 0.55 | 0.83 | 1.66 | 1.66 | 2.36 | 2.77 | 3.33 | 3.88 |
| (mN·m) | 1.96 | 3.92 | 5.88 | 11.76 | 11.76 | 16.67 | 19.61 | 23.54 | 27.46 |
Stall Torque (kg·cm) | 0.14 | 0.32 | 0.54 | 1.08 | 1.08 | 1.57 | 1.80 | 2.15 | 2.52 |
| (ozf·in) | 1.94 | 4.44 | 7.50 | 15.00 | 15.00 | 21.80 | 25.00 | 29.86 | 35.00 |
| (mN·m) | 13.73 | 31.38 | 52.96 | 105.91 | 105.91 | 153.96 | 176.52 | 210.84 | 247.13 |
| Specification | Reduction Ratio | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 10:1 | 30:1 | 50:1 | 100:1 | 168:1 | 210:1 | 250:1 | 298:1 | 380:1 | |
| Gearbox Thickness(mm) | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| No-load speed(r/min) | 1250 | 417 | 250 | 125 | 74 | 60 | 50 | 42 | 33 |
| Rated speed(r/min) | 1060 | 353 | 212 | 106 | 63 | 50 | 42 | 36 | 28 |
| Rated torque(kg·cm) | 0.02 | 0.04 | 0.06 | 0.12 | 0.13 | 0.17 | 0.20 | 0.24 | 0.30 |
| (ozf·in) | 0.28 | 0.56 | 0.83 | 1.67 | 1.81 | 2.36 | 2.78 | 3.33 | 4.17 |
| (mN·m) | 1.96 | 3.92 | 5.88 | 11.77 | 12.75 | 16.67 | 19.61 | 23.54 | 29.42 |
Stall torque (kg·cm) | 0.02 | 0.04 | 0.06 | 0.12 | 0.13 | 0.17 | 0.20 | 0.24 | 0.30 |
| (ozf·in) | 0.28 | 0.56 | 0.83 | 1.67 | 1.81 | 2.36 | 2.78 | 3.33 | 4.17 |
| (mN·m) | 1.96 | 3.93 | 5.88 | 11.77 | 12.75 | 16.67 | 19.61 | 23.54 | 29.42 |

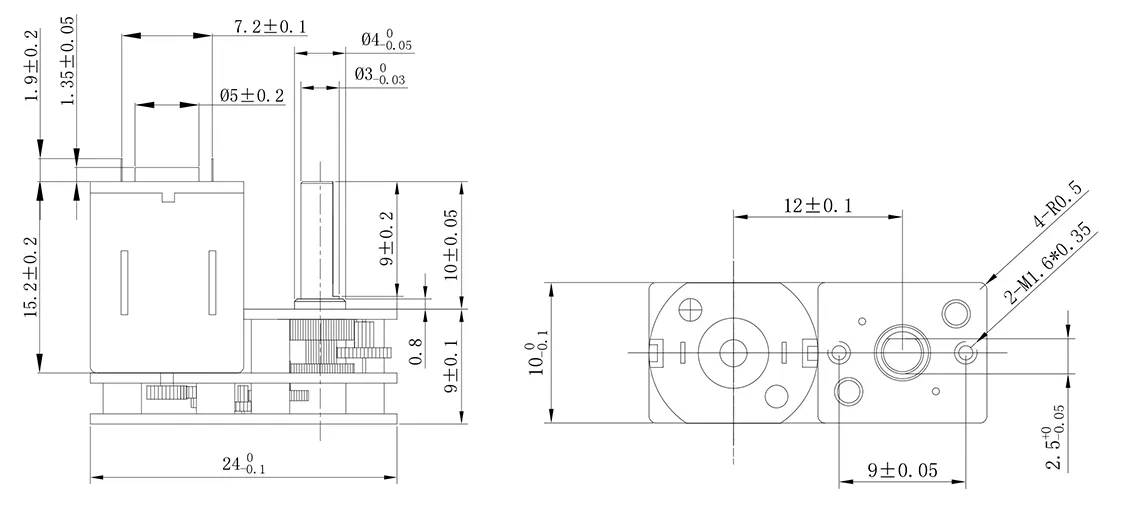

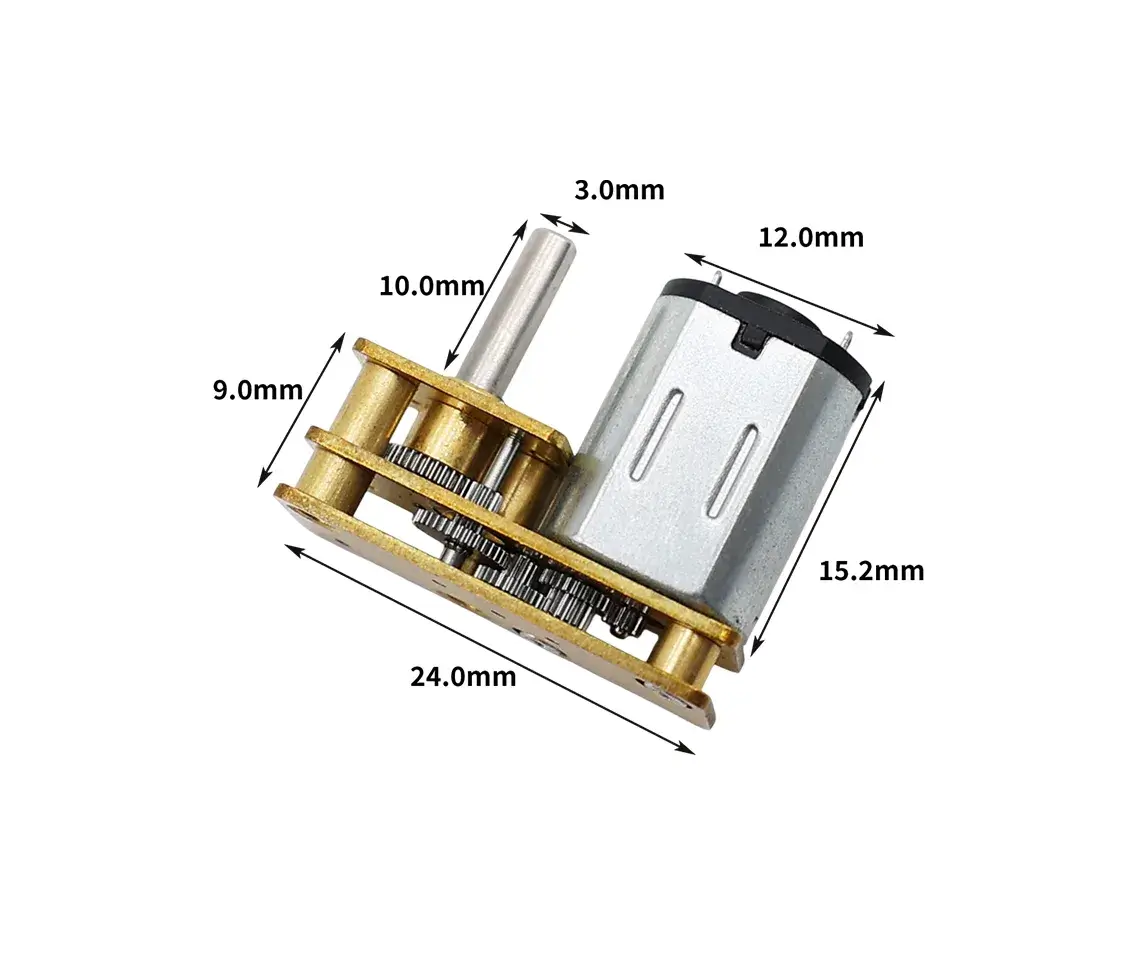

N20 12V 600 RPM Micro Metal Gear Motor Dimensions
*12V DC 600RPM N20 metal gear motor can be customized according to custom requirements
💡 Applications of N20 Gear Motor
1 Smart Toilet & Bidet Systems
- Automatic Lid Opening/Closing – For touchless or remote-controlled toilet lids.
- Bidet Nozzle Adjustment – Precise movement for spray positioning and retraction.
- Self-Cleaning Mechanisms – Motorized rotation for nozzle cleaning cycles.
2 Medical & Healthcare Devices
- Adjustable Hospital Beds – Fine-tuning bed angles or height in compact medical equipment.
- Infusion Pumps – Controlled fluid dispensing mechanisms.
- Portable Diagnostic Devices – Small motorized parts in handheld medical tools.
3 Robotics & Automation
- Miniature Robotic Arms – Precise joint movements in small-scale robots.
- DIY Robotics (Arduino/Raspberry Pi) – Compact actuators for educational or hobbyist projects.
- Swarm Robots – Lightweight motorization for collective robotic systems.
4 Consumer Electronics & Appliances
- Automatic Soap Dispensers – Motor-driven pumping mechanisms.
- Smart Mirrors – Adjustable tilting or positioning systems.
- Camera Gimbal Stabilizers – Fine motor control for smooth movements.
5 Automotive & Mobility
- Car Seat Adjustments – Small actuators for lumbar support or headrest positioning.
- Electric Vehicle (EV) Components – Compact motorized valves or vents.
6 Industrial & IoT Applications
- Valve Control in Microfluidics – Precision liquid handling in lab automation.
- Conveyor Belt Mini-Motors – Small-scale material handling systems.
- Smart Locks – Motorized bolt mechanisms for compact locking systems.
7 Toys & Hobbyist Projects
- RC Cars & Drones – Compact gear motors for steering or propulsion.
- Animatronics – Small movements in robotic toys or cosplay mechanisms.

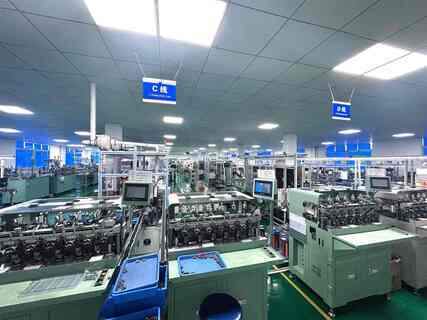

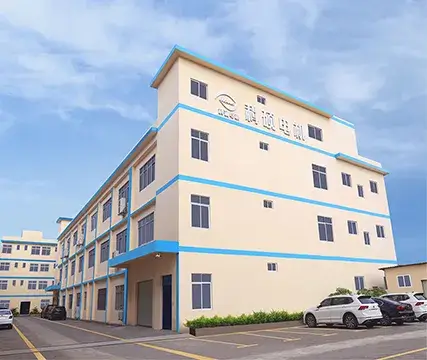

🏭️ N20 Gear Motor Manufacturing Factory
 |  |  |

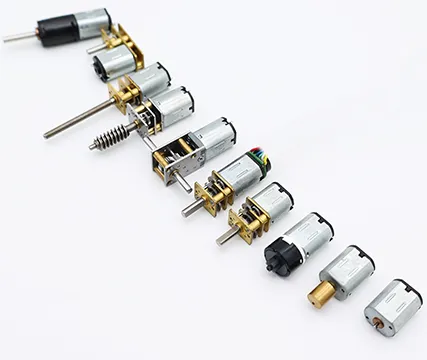

⚙N20 DC Motor List & Recommendations
Global Trade Logistics Solutions
Keywords:
micro metal gear motors, gm1024-n20, n20 gear motor, gm1024, n20 gear motor, n20 linear actuator, n20 d-shaft gear motor, n20 12v 600 rpm micro metal gear motor, micro metal gear motors n20 6v 200 rpm, n20 gear motor price, n20 motor dimensions, smart toilet, medical devices, automatic soap dispensers
Development Samples & Engineering & Manufacturing:
For production quotes or consultations on customization and integration services, please contact one of our Sales Engineers.
Payment Methods:
We accept the following payment methods: PayPal or T/T
🔊FAQ – Frequently Asked Questions
Q: What information should I provide if I want a custom motor?
A: Please provide the basic specifications of the motor, including dimensions, size, voltage, speed, and torque. It’s also helpful to send prototype drawings of your application if possible.
Q: What types of motor do you offer?
A: We offer a wide range of motor, Diameter 6mm–86mm DC Micro Motor and Gear Motor, Electric Motor, Auto DC Motor, Stepper Motor, Brushed DC Motor, Brushless DC Motor, Spur Gear Motor, Vibration Motor, etc.
Q: What are the main applications of your micro DC motor?
A: Our mini DC motor are widely used in various industries and applications, such as:
✔️Home Appliances - For smart home devices and household automation.
✔️Office Equipment - Powering office tools like printers, scanners, and copiers.
✔️Health Care Applications - Used in medical devices like infusion pumps and diagnostic equipment.
✔️Sanitation Industry - In automated cleaning devices and equipment.
✔️High-End Toys - For precision movement in advanced toys and gadgets.
✔️Banking Systems - In ATMs and other banking automation equipment.
✔️Electronic and Electrical Tools - Powering tools like drills, screwdrivers, and other compact machinery.
✔️Automation Industry - For use in robotic systems, automated assembly lines, and industrial machines.
✔️Banking Equipment - In card readers, cash dispensers, and similar devices.
✔️Payment Systems - For precise control in point-of-sale devices and vending machines.
✔️Vending Machines - Powering mechanisms for product dispensing and coin operations.
✔️Electric Door Locks - In smart locking systems for security applications.
Ceitification:
In terms of product quality management, the company has passed and implemented management system certifications such as automotive industry quality management system certification (✅IATF 16949:2016), medical device quality management system certification (✅ISO13485:2016), ISO9001 quality management system certification (✅ISO9001:2015), etc.
